"SLASHBUSTER"® XL 480 Brush Cutter

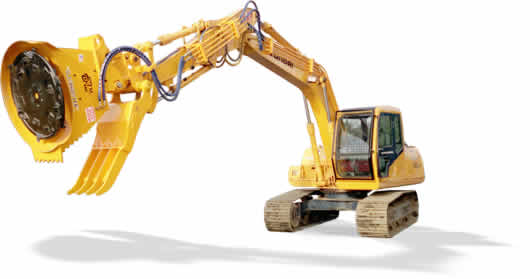

xl480 mounted on a zero tail swing excavator and integrated with a Helac powertilt

The "SLASHBUSTER"® XL 480 brush cutter attachment is a leader in low-cost maintenance mowers. The standard configuration includes a blade bar assembly with a 48 inch swath, ideal for mulching material up through six inches in diameter when mounted on a small 10 to 14 ton excavator.

Installed on a larger excavator, the XL 480 with "S-7" mulching disk becomes more efficient in larger material such as an occasional eight inch or larger stem. The tilt mount and a material handler are productive options on this model.

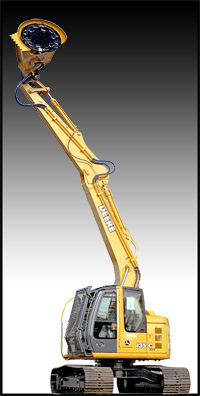

XL480 with tilt mount and mulching disk on a zero tail swing excavator



XL 480 with S-7 mulching disk and integration with existing hydraulic thumb and quick coupler on a Volvo EW180E, video provided courtesy of Volvo Construction Equipment.

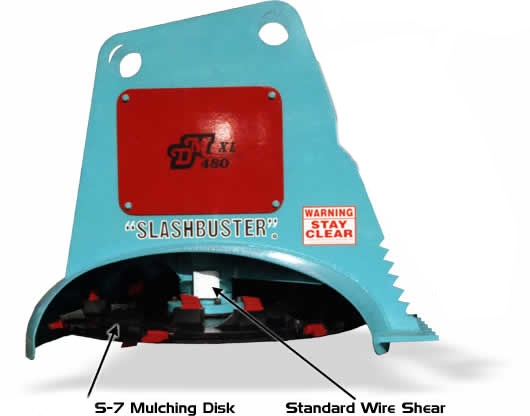

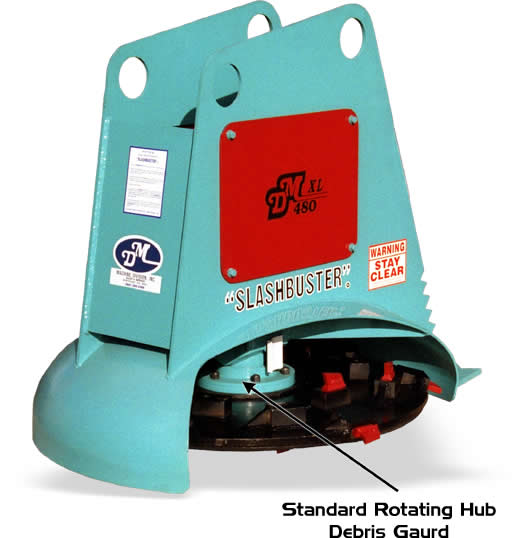

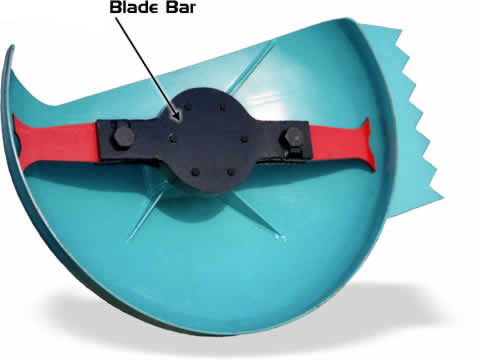

XL 480 Brush Cutter Attachment with optional mulching disk XL480 mulching disk and wire shear XL480 rotating hub debris guard XL480 blade bar

XL 480 with blade bar cutting assembly on long reach excavator, provided courtesy of Doosan Infracore Construction Equipment

"SLASHBUSTER"® Model XL 480 brushcutterwith integrated Helac® Powertilt®, PSM® quick coupler & PSM® hydraulic thumb.

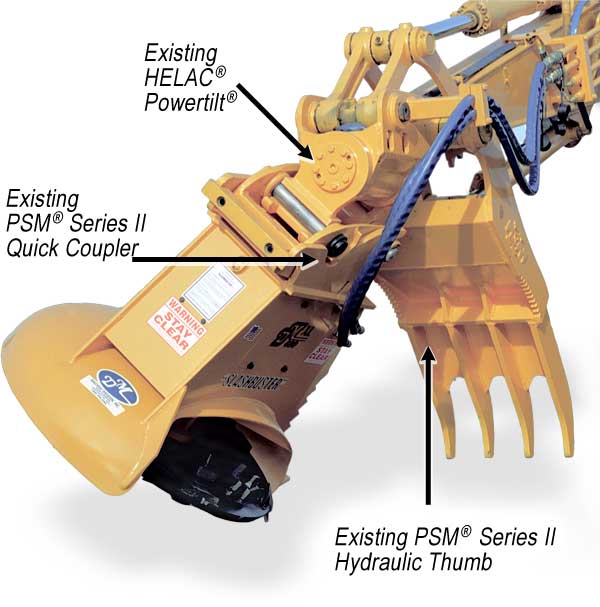

Custom XL 480 brush cutter installation integrating an existing PSM® quick coupler/release mount, Helac® powertilt® tilt mount and PSM® hydraulic thumb.

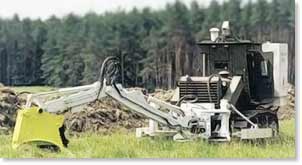

The XL 480 is also used in humanitarian demining projects for vegetation clearance.
xl480 used on demining equipment
